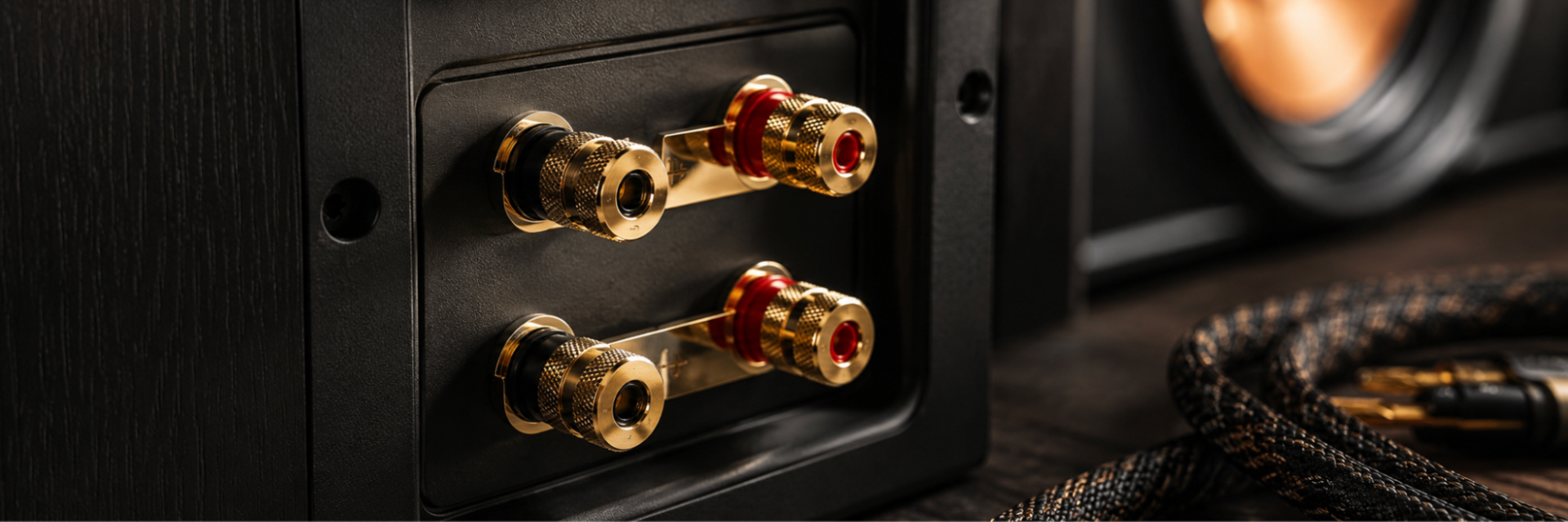

A speaker binding post is a connection terminal on the back of a speaker, amplifier, or receiver that clamps the speaker cable in place. Each speaker channel uses a pair of posts, one for the positive (+) signal and one for the negative (−), usually color-coded red and black.
The post opens and closes with a plastic collar. You loosen it, insert the cable or connector, and tighten it back down so the link stays firm and conducts cleanly.
Polarity matters here. Connect the red terminal on the speaker to the red terminal on the amplifier, and the black terminal on the speaker to the black terminal on the amplifier. Reversing one channel puts the speakers out of phase, which thins the bass and smears the stereo image.
Types of Speaker Binding Posts
Speaker terminals come in three common forms, and they differ mainly in which connectors they accept.
Standard binding post
A standard post takes bare wire and spade connectors through a screw-down cap. It covers the basics and appears on budget gear, but it won't accept banana plugs.
5-way binding post
The 5-way post is the most flexible terminal and the one fitted to most quality speakers. It accepts five connection methods, which is where the name comes from.
Spring clip terminal
A spring clip holds bare wire with a small push-down lever. You press the tab, slide the wire in, and release. Clips are inexpensive and common on entry-level systems, though they grip only thin bare wire and tend to loosen over time.
What Connections Does a 5-Way Binding Post Support?
A 5-way binding post accepts five cable terminations, which is why it fits almost any setup. Each method leans toward a different priority: cost, speed, or grip.
Bare wire
The exposed copper strands feed through a hole in the post and clamp under the cap. This gives a direct, low-cost connection with no extra hardware to buy.
Banana plug
A single pin pushes straight into the end of the post. Banana plugs connect and disconnect in a second, which helps if you move equipment often.
Spade connector
A U-shaped fork slides around the post shaft and locks under the cap. The spade holds firmly and pairs well with thicker cable.
Pin connector
A thin straight pin fits terminals that won't accept bare wire. It appears on some European and older equipment.
Dual banana plug
Two banana pins sit in one housing, spaced to the standard 3/4-inch gap. A single push connects both polarities at once.
How to Connect Speakers to Binding Posts
Match polarity first, then secure the cable. Positive to positive, negative to negative, on both the speaker and the amplifier.
For bare wire, twist the exposed strands tight so no filaments stick out. Unscrew the collar, pass the wire through the hole in the post, and tighten the cap down onto the wire.
For a banana plug, tighten the collar fully, then push the plug straight into the hole in the end of the post. Nothing needs unscrewing.
For a spade connector, loosen the collar, slide the fork around the metal shaft, and screw the collar back down onto the spade.
Keep stray strands clear of the neighboring terminal. A single loose filament touching the opposite post can create a short circuit that can shut down or damage an amplifier.
Binding Posts vs Spring Clip Terminals
The core difference is compatibility. A binding post accepts nearly every connector type, while a spring clip takes only thin bare wire.
|
Feature |
5-Way Binding Post |
Spring Clip |
|
Bare wire |
Yes |
Yes (thin only) |
|
Banana plugs |
Yes |
No |
|
Spade connectors |
Yes |
No |
|
Cable thickness |
Handles thick gauge |
Thin only |
|
Grip over time |
Screw-down, stays tight |
Can loosen |
|
Typical gear |
Quality speakers and receivers |
Entry-level systems |
What Are Binding Posts Made Of?
Most binding posts are machined from brass, often plated with gold or nickel. Brass conducts well and resists wear, while the plating shields the surface from corrosion.
Corrosion is the practical concern. An oxidized terminal adds resistance at the contact point, which can dull the signal and cost a little detail. Gold plating stays bright and conductive far longer than bare metal, so the connection keeps its quality across years of use.
Single vs Dual Binding Posts (Bi-Wiring and Bi-Amping)
Some speakers carry two pairs of binding posts instead of one. The pairs feed the speaker's high-frequency and low-frequency sections separately and come joined by small metal jumpers from the factory.
Whether you keep or remove the jumpers depends on how you wire the speaker:
- Keep the jumpers in for a standard single-cable run so both pairs receive the signal.
- Remove them to bi-wire - two separate cable runs from the same amplifier, one to the high terminals and one to the low.
- Remove them to bi-amp - a separate amplifier channel driving each pair for tighter control over the sound.
FAQ
Are banana plugs better than bare wire?
Both conduct equally well when installed correctly. Banana plugs connect and disconnect faster and give a neat, repeatable fit, while bare wire adds no cost. Choose plugs if you rearrange gear often.
What gauge speaker wire works with a binding post?
16-gauge suits most runs, and 14- or 12-gauge suits long runs or higher power. A 5-way post handles all three, while a spring clip usually accepts only thinner 16- or 18-gauge.
Can I use bare wire in a 5-way binding post?
Yes. Twist the strands tight, feed them through the hole in the post, and screw the cap down. Keep loose filaments away from the opposite terminal to avoid a short.
Why does my speaker have four binding posts?
Four posts mean two pairs, wired for bi-wiring or bi-amping. Metal jumpers link the pairs for normal single-cable use, so leave them in unless you run separate cables.
Do binding posts affect sound quality?
Indirectly. A clean, tight connection to a corrosion-resistant post minimizes signal loss. A loose or oxidized terminal adds resistance and can dull the sound.
Which binding post connector is the most secure?
A spade connector under a fully tightened collar gives the firmest hold, especially with thick cable. Banana plugs trade a little grip for speed and convenience.
Key Takeaways
A speaker binding post connects speaker cable to an amp, receiver, or speaker, always working in a red/black pair for positive and negative. The 5-way version is the most versatile, taking bare wire, banana plugs, spade connectors, pin connectors, and dual banana plugs, so it fits almost any cable you own. Whichever connector you use, match polarity on both ends and keep stray strands clear of the opposite post. If a speaker has two pairs of posts, it supports bi-wiring or bi-amping, and you leave the jumpers in for a standard single-cable hookup.
