A center channel speaker sits above or below the screen in a surround sound system and reproduces dialogue along with on-screen sound effects. It locks voices to the picture so every seat on the sofa hears clear, focused dialogue.
This is the speaker who decides whether you actually understand what the actors are saying. The guide below covers what it does, how it works, how to pick one that matches your main speakers, and how to position and calibrate it.
What Is a Center Channel Speaker
A center channel speaker is a single loudspeaker placed at the front of a home theater to reproduce the dedicated center track inside formats like Dolby Digital, DTS, Dolby Atmos, and DTS:X.
That center track is one of several audio channels sound engineers mix separately during film production. Your AV receiver pulls it out of the soundtrack and sends it only to this one speaker — independent of the left, right, surround, and overhead channels.
Most center speakers use a horizontal cabinet with a tweeter between two mid-woofers, a layout designed to fit neatly above or below a TV. Step up to higher-end models, and you'll find three-way designs with a dedicated midrange driver, which sharpens vocal clarity at a higher cost.
If you've ever seen a system labeled 5.1.2 or 7.1.4, the center channel is always the "1." Every standard surround format specifies exactly one.
How a Center Channel Speaker Works
Your AV receiver decodes the surround soundtrack, pulls out the center track, amplifies it, and sends it only to the center speaker. No other speaker plays this signal at full level.
The result: dialogue and on-screen effects come from the screen itself. When an actor speaks, the voice arrives from where their face is — not from a vague point floating between your left and right speakers.
Inside the cabinet, the tweeter handles everything above roughly 2 kHz, and the mid-woofers cover the vocal range from about 100 Hz to 2 kHz. Bass below the crossover point — usually 80 Hz — is rerouted to the subwoofer, which is built to reproduce it cleanly.
Skip the center speaker entirely, and the receiver falls back to a "phantom center" mode, splitting the center signal evenly between the left and right speakers. That virtual center only holds together if you're sitting dead in the middle. Move one seat to the side, and dialogue starts drifting toward the closer speaker.
Why the Center Channel Is the Most Important Speaker
Roughly 50–70% of a movie's audio runs through the center channel — nearly all dialogue and most on-screen effects. A weak center hits exactly the part of the soundtrack you can't afford to lose.
This is also the part you actively listen to. Dialogue carries the story and emotional cues; the effects are blended into the center-anchor action of the picture. Everything else — music, ambience, surrounds — supports it.
Without a dedicated center, only the person sitting dead center on the sofa hears the dialogue properly placed. Anyone off to the side hears voices pulled toward whichever speaker they're closer to, which gets exhausting over a two-hour movie.
Tonal match matters too. If your center comes from a different brand or series than your left and right speakers, voices change character whenever a sound pans across the screen. A budget center next to high-end mains creates an audible "tonal hole" — you can hear the seam every time something moves from one side to the middle.
How to Choose a Center Channel Speaker
The single most important criterion is tonal match with your left and right speakers. Buy the center from the same brand and series as your mains — ideally, the model the manufacturer designed specifically as the matched center for that line.
Beyond that, here's what to look for:
Brand and series match
The center should share drivers and cabinet materials with your L/R speakers — mixing brands almost always causes audible coloration during pans
Sensitivity
88 dB or higher (rated at 1W/1m) keeps things efficient with most receivers in the 80–150 watts-per-channel range
Frequency response
At least 80 Hz to 20 kHz; deeper low-end extension reduces dependence on the subwoofer crossover
Power handling
Matches or exceeds your receiver's continuous per-channel output
Driver layout
Two-way MTM (mid-tweeter-mid) is standard; three-way designs with a dedicated midrange driver sharpen vocals at a higher cost
Size
Has to physically fit above or below the screen without blocking the picture, IR sensor, or any ventilation slots
Budget-wise, plan to spend roughly 50–80% of the per-unit price of your L/R speakers on the center. Going much cheaper than that is the single most common cause of front-stage imbalance.
Where to Place a Center Channel Speaker

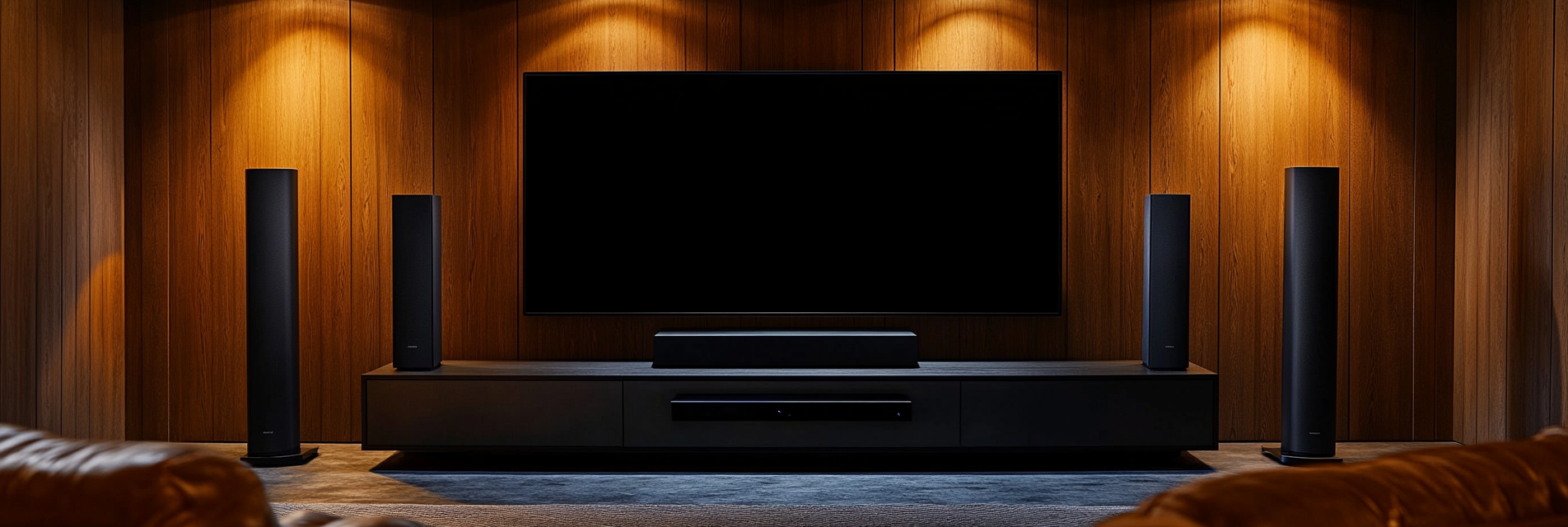

Place the center channel directly under or above the screen, horizontally centered, with the tweeter as close to seated ear level as you can manage. Ear level on a typical sofa lands somewhere around 36–42 inches (91–107 cm) from the floor.
Step by step:
- Line the speaker up on the horizontal centerline of the screen
- Get the tweeter within ±10 inches (±25 cm) of ear height
- If the tweeter ends up below ear level, tilt the speaker upward with rubber feet or a small wedge
- Bring the front of the speaker flush with the edge of any cabinet, shelf, or stand
- Leave at least 6 inches (15 cm) of clearance behind the speaker to dampen rear-wall reflections
- Keep the front grille clear — books, remotes, or decor in front of it muffle the output
If the speaker has to live inside a cabinet, line the interior with rigid acoustic insulation or thick felt. An undamped enclosure produces a "boxy" or "chesty" sound, especially on deeper male voices.
For projector setups with an acoustically transparent screen, put the center directly behind the screen at screen-center height. For TVs and non-transparent screens, the speaker below the screen beats the one above it — keeping the speaker low aligns dialogue with the mouths actually moving on screen.
How to Calibrate a Center Channel Speaker
Calibration comes down to four settings inside the AV receiver: speaker size, crossover frequency, distance, and channel level. Most receivers tuck them under a "Speaker Setup" or "Manual Setup" menu.
Walk through it in this order:
- Run the receiver's automatic room correction first — Audyssey, Dirac Live, YPAO, ARC, or MCACC, depending on the brand. These do most of the heavy lifting
- Set speaker size to "small" — this routes bass below the crossover down to the subwoofer and takes strain off the center driver
- Set the crossover to 80 Hz as a starting point; bump it up to 100 or 120 Hz if you hear cabinet resonance or chesty male voices
- Verify the distance — measure from your seat to the front of the speaker and enter the value in the receiver
- Tune the level by ear — after auto-calibration, nudge the center up by +1 to +3 dB if dialogue still feels buried under music and effects
- Test with a dialogue-heavy scene — voices should sit right at the screen, not drifting left, right, up, or down
Auto-calibration usually nails distance and level to within 1 dB. Final dialogue level, though, comes down to taste — most listeners settle on +1 to +2 dB above whatever the auto-cal landed on.
Common Center Channel Speaker Problems and Fixes
Three issues account for most center channel complaints: muffled dialogue, cabinet resonance, and tonal mismatch with the main speakers. Each one has a specific fix — at the speaker, in placement, or inside the receiver.
Muffled or recessed dialogue
The speaker is enclosed, blocked, or aimed away from you. Move it forward to the cabinet edge, clear the grille, and angle it toward ear height.
Chesty or boomy male voices
Cabinet resonance is reinforcing the lower midrange. Push the receiver's crossover from 80 Hz up to 100 or 120 Hz, and line the inside of the enclosure with damping material.
Dialogue is too quiet under the music and action
The channel level is set too low. Add 2–3 dB to the center in the receiver's level menu.
Voices shifting left or right during pans
The speaker isn't horizontally centered, or your L/R speakers sit at unequal distances. Re-measure both, then re-run room correction.
Tonal mismatch with L/R
The center is a different brand or series than your mains. Swap it for a matched-series model when the budget allows.
If you've worked through all of these and dialogue still doesn't sound right, the room is the suspect. A glass coffee table or a bare hardwood floor right in front of you bounces mid-frequencies back at your ears and smudges clarity. A rug or some soft furniture in front of the listening position usually solves it.
FAQ
Do I really need a center channel speaker?
For any 5.1 or larger surround setup, yes. Without one, the receiver falls back to phantom-center mode, which only works for whoever is seated dead-center between the L/R speakers — everyone else loses dialogue clarity. The only system in which you can skip the center is a plain stereo setup (2.0 or 2.1).
Can I use any speaker as a center channel speaker?
Physically, yes — any passive speaker with the right impedance and power handling will work. Sonically, only a tonally matched speaker delivers a coherent front stage. A bookshelf speaker from the same series as your mains will usually outperform a horizontal "center" model from a different brand.
What's the difference between a soundbar and a center channel speaker?
A center channel speaker plays only the center track within a multi-speaker surround system. A soundbar is a self-contained unit that reproduces all the channels — left, center, right, and sometimes surround and Atmos — from a single cabinet. Soundbars replace a full speaker system; centers are one component inside one.
Should the center speaker be above or below the screen?
Below, when you have the choice. Below-screen placement keeps dialogue aligned with the actor's mouth and matches how soundtracks are typically mixed. Above-screen works if it's the only option — just angle the speaker downward toward the listening position.
Why is my center channel so quiet?
Usually one of three causes: the channel level is set too low in the receiver, the speaker is enclosed or blocked by something in front of it, or the source itself is mixed with low dialogue (common on streaming). Bump the center up by 2–3 dB, and make sure nothing is blocking the grille.
What is the best crossover frequency for a center channel speaker?
80 Hz is the standard starting point and matches the THX recommendation. Push it to 100 or 120 Hz if you have a smaller center or hear cabinet resonance on deep male voices. Don't go above 120 Hz — bass starts to become audibly localized to the subwoofer instead of blending in.
Key Takeaways
A center channel speaker reproduces the dedicated center track in a surround sound system and carries nearly all dialogue and most on-screen effects. It anchors voices to the picture and is the single most important speaker for movie and TV intelligibility.
When choosing one, match the brand, series, and driver design with your left and right speakers. Tonal match matters more than absolute price tier — a matched mid-range center beats a mismatched flagship in any pan-heavy scene.
Place the center directly under or above the screen, with the tweeter aimed at ear level, the cabinet free of obstructions front and back, and at least 6 inches of rear clearance. Set the receiver crossover to 80 Hz, run automatic room correction, and fine-tune the channel level by +1 to +3 dB for natural dialogue volume.
