The "2-way" label on a speaker box tells you how the speaker divides sound between its drivers. You will see it on most bookshelf speakers, studio monitors, and car door speakers sold in the US. The term describes how a speaker distributes bass, vocals, and treble across its components.
What Is a 2-Way Speaker?
A 2-way speaker is a loudspeaker that splits the audio signal into two frequency bands and sends each band to its own driver. The woofer reproduces bass and midrange frequencies, while the tweeter reproduces the treble.
The division happens at a single point on the frequency spectrum, called the crossover frequency. In most 2-way designs, it sits between 1,500 and 3,500 Hz. Frequencies below that point are routed to the woofer, and frequencies above it are routed to the tweeter.

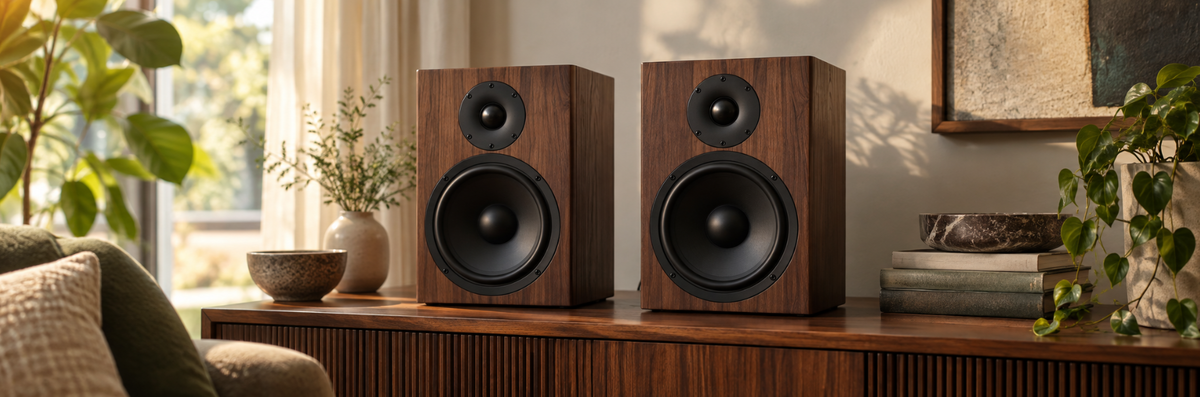

A typical bookshelf speaker illustrates the configuration clearly. A 5- to 6.5-inch cone woofer occupies the lower portion of the front panel, with a 1-inch dome tweeter positioned above it. Together, the two drivers cover most of the audible spectrum, which runs from about 20 Hz to 20,000 Hz.
How a 2-Way Speaker Works
Inside a 2-way speaker, the signal passes through three parts. The crossover sorts it by frequency, and then the woofer and the tweeter each turn their share into sound. The speaker performs accurately only when all three components are engineered to work together.
The Woofer
The woofer covers everything from the lowest bass the cabinet can produce up to the crossover point. In a bookshelf speaker, that usually means a range from about 45β60 Hz up to 2,000β3,000 Hz. Woofers use large cones, typically 4 to 8 inches across, because reproducing low frequencies requires moving a large volume of air.
Because it covers such a wide band, the woofer in a 2-way speaker also reproduces most of the midrange. Vocals, guitars, and the body of a piano come largely from this one driver. That dual responsibility defines the 2-way architecture and explains most of its compromises.
The Tweeter
The tweeter reproduces the frequencies above the crossover point, up to 20,000 Hz and higher. Most home speakers use a tweeter with a 0.75- to 1-inch dome made of silk, aluminum, or another light material. A lightweight diaphragm accelerates and stops quickly enough to follow high-frequency vibrations accurately.
Treble carries cymbals, the attack of plucked strings, and the "s" and "t" sounds in speech. A well-built tweeter makes a recording sound clear and detailed without turning harsh at higher volume.
The Crossover
The crossover divides the signal into two bands. A high-pass filter lets only high frequencies reach the tweeter, and a low-pass filter keeps the woofer below the crossover point. Without this filter, bass would reach the tweeter and could burn out its small voice coil.
Passive speakers use a passive crossover. It sits inside the cabinet as a small circuit board with capacitors and coils, and it splits the full signal after an external amplifier has boosted it.
Powered speakers and most studio monitors use an active crossover. Here the split happens before amplification, and each driver gets its own built-in amplifier. Audio engineers call this setup bi-amping, and it allows more precise control over how the two drivers integrate.
What the "2" in 2-Way Actually Counts
The number in "2-way" refers to the frequency bands created by the crossover. A speaker can contain three or four drivers and still qualify as a 2-way design, provided its crossover divides the signal only once.
- Two woofers and one tweeter. When both woofers play the same band, the speaker stays 2-way. Many center-channel speakers and slim towers use this layout to get more bass output from a narrow cabinet.
- 2.5-way layout. Both woofers play bass, but only one continues up into the midrange to meet the tweeter. The second woofer fades out at a few hundred hertz, which adds bass without adding a second source of vocals.
- Coaxial speakers. The tweeter is mounted in the center of the woofer, on the same axis. This design stays 2-way and serves as the standard format for car door speakers and ceiling speakers.
- Stereo. Stereo refers to two audio channels, left and right, and has nothing to do with the number of bands. A stereo pair of 2-way speakers has four drivers in total.
2-Way vs 3-Way Speakers
A 3-way speaker adds a third driver, the midrange, along with a second crossover point. The woofer then handles only bass, the midrange driver takes the vocal range, and the tweeter keeps the treble.
Typical 3-way crossovers sit around 300β500 Hz and 2,500β4,000 Hz. With a dedicated driver for the middle band, the woofer no longer switches between deep bass and detailed midrange at the same time.
| Feature | 2-way speaker | 3-way speaker |
|---|---|---|
| Frequency bands | 2 | 3 |
| Crossover points | 1 (usually 1,500β3,500 Hz) | 2 (around 300β500 Hz and 2,500β4,000 Hz) |
| Drivers | Woofer and tweeter | Woofer, midrange, and tweeter |
| Who plays vocals | Mostly the woofer | The dedicated midrange driver |
| Typical woofer size | 4 to 8 inches | 6.5 to 12 inches |
| Cabinet size | Compact | Larger, often floorstanding |
| Typical formats | Bookshelf speakers, studio monitors, center channels, car coaxial speakers | Floorstanding towers, large monitors, car component sets |
| Price at similar build quality | Lower | Higher |
| Best fit | Small and medium rooms, desks, close listening | Large rooms, high volume, full-range playback without a subwoofer |
An additional driver does not automatically improve performance. Every crossover point creates a zone where two drivers overlap and must match in level and timing, and a 3-way speaker has two of these zones. A carefully engineered 2-way speaker often sounds more coherent than a budget 3-way model with cheap parts and a rough crossover.
The 3-way design shows its advantage mainly at high volume and in large rooms. There, a 2-way woofer that plays bass and vocals at once can start to distort, while a 3-way speaker keeps those two jobs on separate drivers.
Where You Find 2-Way Speakers
Most compact speakers use the 2-way layout. Two drivers and one crossover fit into a small cabinet and keep the price affordable.
- Bookshelf speakers. Nearly all of them use a 2-way design with a 4- to 6.5-inch woofer and a 1-inch tweeter.
- Studio monitors. Most nearfield monitors are powered 2-way speakers with an active crossover and a separate amplifier for each driver.
- Center-channel, in-wall, and ceiling speakers. Center channels often place two woofers around one tweeter, and ceiling speakers usually use a coaxial driver.
- Car audio. Coaxial speakers drop straight into factory locations, while component sets mount the tweeter separately, higher on the door or dash, and use an external crossover.
- Portable and wireless speakers. Larger Bluetooth speakers often pair a woofer and a tweeter for each channel, while the smallest models usually rely on full-range drivers.
Strengths and Limitations of a 2-Way Design
The main trade-off of a 2-way speaker comes from its woofer. One driver covers both bass and most of the midrange, which keeps the design simple and also sets its limits.
A single crossover point keeps the signal path relatively simple. With only two drivers to integrate, a 2-way speaker tends to sound coherent, and vocals originate from nearly one location. This coherence becomes most noticeable at close listening distances, on a desk or in a small room.
The simpler construction also reduces manufacturing cost and cabinet size. A pair of quality 2-way bookshelf speakers usually costs less than 3-way towers of similar build quality and runs well on a modest stereo receiver.
Bass depth sets the first limit. A 5- to 6.5-inch woofer in a bookshelf cabinet usually loses strong output somewhere around 45β60 Hz. Kick drums, pipe organs, and film explosions extend considerably lower. At high volume, the woofer also requires significant cone movement to produce bass, which can blur the midrange it reproduces simultaneously.
The second limit comes from where the crossover falls. In most 2-way designs, the split lands between 1,500 and 3,500 Hz, a range where human hearing is especially sensitive. Any imperfect integration between woofer and tweeter in that region becomes more audible than a mismatch in the bass.
A subwoofer removes the bass limit. When a receiver or the subwoofer's own crossover redirects everything below about 80 Hz to the sub, the 2-way speakers stop straining on deep bass. They then reproduce the midrange more cleanly. Stores sell this combination as a 2.1 system, and it sits at the core of most home theater setups.
Is a 2-Way Speaker Right for You?
A 2-way speaker suits most listeners with small or medium rooms and moderate listening distances. Five factors decide whether it covers your needs.
- Room size. In a bedroom, office, or living room up to roughly 300 square feet, a pair of quality 2-way bookshelf speakers fills the space at normal volume. Large open-plan rooms call for 3-way towers or a 2-way pair with a subwoofer.
- Listening distance. At a desk, where your ears are 3 to 4 feet from the speakers, 2-way nearfield speakers give the most even sound.
- Volume and content. If you play movies or electronic music loud, plan a subwoofer or look at 3-way models.
- Budget. At a fixed budget, a better-built 2-way speaker usually beats a cheaper 3-way one, because the money goes into fewer, higher-grade parts.
- Space. Compact 2-way cabinets fit shelves, stands, desks, and car doors where a 3-way tower cannot go.
FAQ
Are 2-way speakers good for bass?
Bookshelf-size 2-way speakers produce solid bass down to roughly 45β60 Hz, and larger 2-way towers reach a little lower. The deepest notes in movies and electronic music sit below that range. Adding a subwoofer covers the lowest octave and lets the 2-way speakers focus on the midrange.
Is a 3-way speaker always better than a 2-way speaker?
Driver count alone does not determine sound quality. A 3-way design has an edge at high volume and in large rooms, yet a well-engineered 2-way speaker often sounds more coherent than a budget 3-way model. Crossover design, driver quality, and the cabinet matter more than the number of bands.
What does 2.5-way mean?
A 2.5-way speaker uses two woofers and one tweeter. Both woofers play bass, but only one continues into the midrange, while the other fades out at a few hundred hertz. The configuration increases bass output and keeps vocals on a single driver.
Is a coaxial speaker a 2-way speaker?
Most coaxial speakers use a 2-way design. The tweeter sits in the center of the woofer on the same axis, and a built-in crossover splits the signal between them. Some coaxial car speakers add one or two extra small drivers and are sold as 3-way or 4-way models.
Does 2-way mean stereo?
The two terms describe unrelated characteristics. Stereo refers to two audio channels, left and right, while 2-way describes how a single speaker splits its signal between two drivers. A standard stereo pair of 2-way speakers has four drivers in total.
Do 2-way speakers need an amplifier?
Passive 2-way speakers need an external amplifier or stereo receiver connected with speaker wire. Powered 2-way speakers, including most studio monitors and desktop speakers, have amplifiers built in. They connect directly to a computer, a phone, or a turntable with a preamp.
Key Takeaways
A 2-way speaker splits sound into two frequency bands, sending bass and midrange to the woofer and treble to the tweeter.
The split happens at one crossover point, usually between 1,500 and 3,500 Hz. The "2" counts frequency bands, so speakers with two woofers and coaxial speakers can both be considered 2-way.
A 3-way speaker adds a midrange driver and a second crossover point, which helps most at high volume and in large rooms. For desks, cars, and small or medium rooms, a 2-way speaker covers most listening needs, and a subwoofer fills in the deepest bass.
