Types of Audio Jacks

In this in-depth article, we explore the various types of audio jacks and their applications in the world of audio technology. From the humble beginnings of the telephone switchboard to the rise of digital and wireless solutions, we trace the evolution of these essential connectors and examine their impact on how we create, consume, and share sound.

By: Aleksey Makohon Date: 05 / 31, 2024

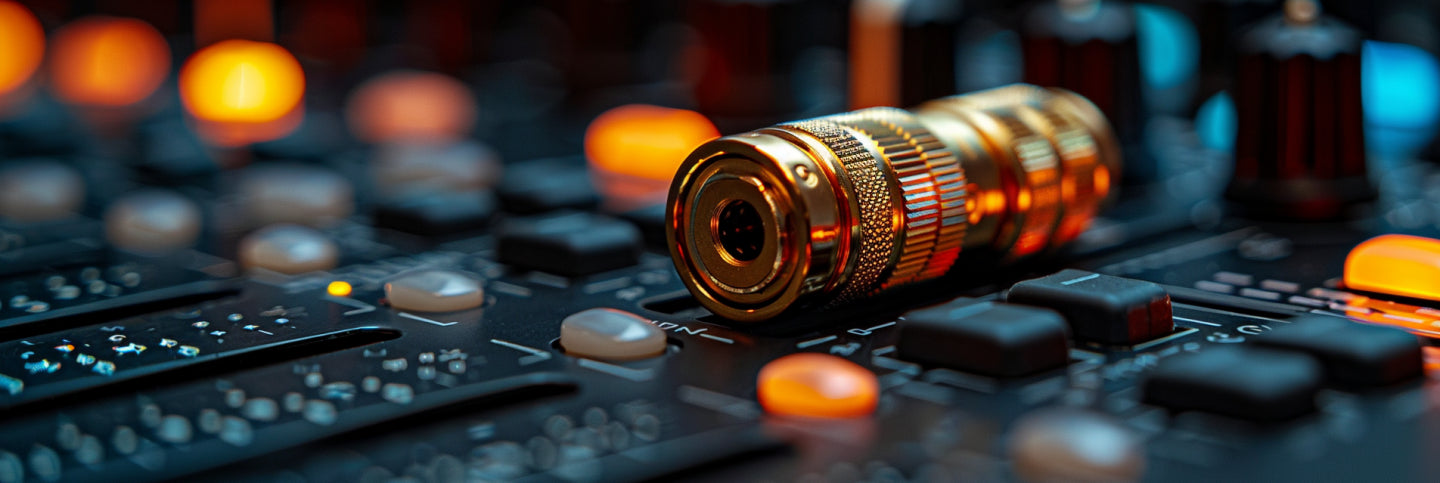

article image

Audio jacks, those small yet essential components, have been the backbone of audio connectivity for decades. These humble connectors have enabled us to enjoy music, podcasts, and conversations on a wide range of devices, from smartphones to professional audio equipment. But what exactly are audio jacks, and how have they evolved over time?

A Brief History of Audio Jacks

The story of audio jacks begins with the invention of the telephone switchboard in the late 19th century. Early switchboards used simple audio connectors to route calls between different lines. As the world of audio technology expanded, so did the need for standardized connectors that could handle various devices and applications.

Over the years, audio jacks have undergone significant changes to keep pace with advancements in audio technology. From the early days of mono jacks to the introduction of stereo and multi-contact connectors, audio jacks have continuously evolved to meet the demands of an ever-changing landscape.

The Importance of Audio Jacks in Audio Technology

Audio jacks play a crucial role in connecting audio devices, allowing us to transmit sound from one device to another. Whether you're plugging your headphones into your smartphone or connecting a microphone to a mixing console, audio jacks ensure a secure and reliable connection.

Moreover, audio jacks have been instrumental in the development of portable audio devices. The advent of the 3.5mm jack, in particular, revolutionized the world of personal audio by enabling the creation of compact, portable devices like the Sony Walkman and, later, smartphones and digital audio players.

Common Types of Audio Jacks

Types of Audio Jacks image 1

2.5mm Audio Jack

Although less common today, the 2.5mm audio jack was once a staple in older cell phones and walkie-talkies. These tiny connectors, measuring just 2.5 millimeters in diameter, were perfect for the compact devices of yesteryear. While they may have fallen out of favor in recent years, 2.5mm jacks still hold a special place in the hearts of audio enthusiasts and collectors.

3.5mm Audio Jack (1/8-inch)

The 3.5mm audio jack, also known as the 1/8-inch jack, is the most common type of audio connector in use today. Found on a wide range of portable devices, from smartphones and laptops to headphones and portable speakers, the 3.5mm jack has become synonymous with personal audio.

Measuring 3.5 millimeters in diameter, this jack strikes the perfect balance between size and functionality. Its compact design allows for the creation of sleek, portable devices, while its versatility enables it to handle both audio input and output.

6.35mm Audio Jack (1/4-inch)

For professional audio equipment, the 6.35mm audio jack, or 1/4-inch jack, reigns supreme. These larger connectors, measuring 6.35 millimeters in diameter, are built to withstand the rigors of live performances and studio sessions.

Found on electric guitars, bass guitars, amplifiers, and mixing consoles, 6.35mm jacks offer a robust and reliable connection that can handle the high-output signals generated by these devices. Their size also makes them easier to grip and manipulate, a crucial factor when you're dealing with complex setups and multiple connections.

Distinguishing Features of Audio Jacks

Types of Audio Jacks image 2

Connector Type

Audio jacks come in two main varieties: mono and stereo. Mono jacks, also known as TS (Tip, Sleeve) connectors, feature a single audio channel and are commonly used for instruments like electric guitars and microphones. Stereo jacks, on the other hand, have two audio channels and are designated as TRS (Tip, Ring, Sleeve) connectors. These jacks are used for headphones, earphones, and other devices that require separate left and right audio channels.

Number of Contact Points: TS, TRS, and TRRS

In addition to mono and stereo jacks, there are also connectors with additional contact points. TRRS (Tip, Ring, Ring, Sleeve) connectors, for example, feature an extra ring that allows for the transmission of microphone input or video output. These jacks are commonly found on smartphone headsets, enabling users to make phone calls and control media playback without the need for additional adapters.

Shielding and Impedance

To ensure optimal audio performance and reduce interference, audio jacks rely on proper shielding and impedance matching. Shielding helps to protect the audio signal from external noise and interference, while impedance matching ensures that the connected devices are compatible and can transmit audio efficiently.

In my experience, I've seen firsthand the importance of these factors. Poorly shielded cables or mismatched impedances can lead to buzzing, humming, or other unwanted noise that can ruin an otherwise perfect audio setup. By paying attention to shielding and impedance, you can ensure that your audio jacks deliver the clarity and quality you demand.

Applications of Audio Jacks

Types of Audio Jacks image 3

Private Listening with Headphones

One of the most common applications of audio jacks is private listening with headphones. Whether you prefer in-ear, on-ear, or over-ear headphones, audio jacks provide the connection you need to enjoy your favorite music, podcasts, or audiobooks without disturbing others.

Wired headphones rely on audio jacks to transmit sound from your device, offering a reliable and high-quality listening experience. While wireless headphones have gained popularity in recent years, many audio enthusiasts still prefer the simplicity and fidelity of wired connections.

Recording and Communication with Microphones

Audio jacks also play a crucial role in recording and communication applications. From lavalier and shotgun microphones used in video production to condenser microphones favored by musicians and podcasters, audio jacks enable the capture of clear, high-quality sound.

In my years, I've worked with countless recording devices and computers equipped with audio jacks. These jacks allow users to connect external microphones, expanding the range of recording possibilities and ensuring compatibility with a wide variety of devices.

Amplifying Sound with Speakers

Whether you're looking to create an immersive home theater experience or enjoy music on the go, audio jacks are essential for connecting speakers and amplifying sound. Home theater systems and soundbars often feature audio jacks for connecting to televisions, gaming consoles, and other devices, while portable Bluetooth speakers use audio jacks for auxiliary input.

As a musician, I've also relied on audio jacks to connect my keyboard to external speakers, allowing me to fill the room with rich, powerful sound. The versatility of audio jacks makes them an indispensable tool for anyone looking to amplify their audio experience.

Musical Performances with Instruments

For musicians, audio jacks are the lifeline that connects them to their instruments and equipment. Electric guitars and basses use 6.35mm (1/4-inch) audio jacks to connect to amplifiers, pedals, and effects units, while keyboards and synthesizers often feature both 6.35mm and 3.5mm jacks for connecting to mixers, DI boxes, and other gear.

Throughout my career, I've spent countless hours setting up and troubleshooting audio connections for performances and recordings. The reliability and compatibility of audio jacks have been essential in ensuring that my instruments sound their best, no matter the venue or situation.

Professional Audio Systems

PA systems and mixing consoles rely on a combination of 6.35mm and XLR connectors to route audio signals between microphones, instruments, and speakers, while audio interfaces and studio monitors use a variety of audio jacks to connect to computers and other recording equipment.

Factors to Consider When Choosing Audio Jacks

Types of Audio Jacks image 4

Durability and Construction Material

When choosing audio jacks, durability and construction material are key factors to consider. Gold-plated connectors, for example, offer superior resistance to corrosion and oxidation, ensuring a clean, reliable connection that can withstand the test of time. Nickel-plated connectors, while less expensive, are still a viable option for many applications.

Strain relief and reinforced cables are also essential for ensuring the longevity of your audio jacks. These features help to prevent damage from repeated plugging and unplugging, as well as from accidental tugs or pulls on the cable.

Compatibility with Devices

Another important consideration when choosing audio jacks is compatibility with your devices. Always check the specifications of your equipment to ensure that the jacks you select are the correct size and type. For example, while 3.5mm jacks are common on consumer devices, professional equipment may require 6.35mm or XLR connectors.

In situations where you need to connect devices with different jack sizes, adapters and converters can be a lifesaver. These accessories allow you to bridge the gap between various connectors, ensuring that your devices can communicate seamlessly.

Audio Quality and Interference

Finally, audio quality and interference are crucial factors to keep in mind when selecting audio jacks. Balanced connections, which use three-conductor connectors like TRS or XLR, offer superior noise reduction and signal integrity compared to unbalanced connections. This is particularly important in professional settings, where even small amounts of interference can compromise the quality of a recording or performance.

In my experience, investing in high-quality, well-shielded audio jacks can make a significant difference in the clarity and fidelity of your audio signal. By prioritizing noise reduction and signal integrity, you can ensure that your audio remains pristine, no matter the application.

Emerging Trends in Audio Jacks

Types of Audio Jacks image 5

USB Audio Jacks (Type-A and Type-C)

One of the most significant emerging trends in audio jacks is the rise of USB audio, particularly through Type-A and Type-C connectors. These digital audio solutions offer several advantages over traditional analog jacks, including improved sound quality, reduced interference, and the ability to transmit both audio and power through a single cable.

USB Type-C, in particular, has become increasingly popular in recent years due to its reversible design and high-speed data transfer capabilities. Many modern smartphones, laptops, and tablets now feature USB-C ports, making it easier than ever to connect digital audio devices without the need for separate power supplies or adapters.

Wireless Audio Alternatives

Another major trend in audio connectivity is the rise of wireless audio solutions, such as Bluetooth and Wi-Fi streaming. These technologies allow users to enjoy high-quality audio without the need for physical cables, providing unprecedented freedom and flexibility.

Bluetooth has become the go-to choice for wireless audio in portable devices, such as smartphones, laptops, and true wireless earbuds. With the advent of Bluetooth 5.0 and newer versions, users can enjoy longer range, lower latency, and improved sound quality compared to earlier iterations of the technology.

Wi-Fi audio streaming, on the other hand, is more commonly used in home audio setups, such as multi-room speaker systems and smart home devices. By leveraging the power of a home Wi-Fi network, these systems can deliver high-resolution audio to multiple devices simultaneously, creating an immersive, whole-home listening experience.

Future of Audio Jacks in Consumer Electronics

As wireless and USB audio technologies continue to gain traction, the future of traditional audio jacks in consumer electronics remains uncertain. Many manufacturers have already begun to phase out analog audio jacks in favor of digital alternatives, with some devices, such as the iPhone, foregoing audio jacks entirely.

This gradual shift towards wireless and USB-C audio has sparked debate among audio enthusiasts, with some expressing concerns about the potential impact on audio quality and accessibility. While digital audio solutions can offer improved fidelity and convenience, they may also introduce new challenges, such as compatibility issues and the need for additional adapters or dongles.

FAQ

How many types of audio jacks are there?

There are several types of audio jacks, including 2.5mm, 3.5mm (1/8-inch), 6.35mm (1/4-inch), and XLR connectors. Each type serves a specific purpose and is used in different applications, from portable devices to professional audio equipment.

How do I know if I have a 2.5 mm or 3.5 mm jack?

The easiest way to determine the size of your audio jack is to measure its diameter. A 2.5mm jack measures 2.5 millimeters across, while a 3.5mm jack measures 3.5 millimeters. You can also consult your device's specifications or user manual to confirm the jack size.

Is AUX 3.5 mm?

Yes, the term "AUX" (auxiliary) is often used to refer to a 3.5mm audio jack. This jack is commonly used for connecting external audio devices, such as smartphones or MP3 players, to speakers or car stereos.

Is 6.35mm jack better than 3.5 mm?

The quality of an audio jack depends on various factors, such as materials, construction, and shielding, rather than just its size. However, 6.35mm jacks are more commonly used in professional audio applications due to their durability and secure connection, while 3.5mm jacks are more prevalent in consumer electronics for their compact size and convenience.

What is a 2.5 mm jack for?

2.5mm jacks were once commonly used in older cell phones, walkie-talkies, and hands-free headsets. While less prevalent today, they can still be found in some specialized audio equipment and adapters.

Are all 3.5 mm jacks the same?

While all 3.5mm jacks share the same diameter, there are different types of 3.5mm connectors, such as TS (mono), TRS (stereo), and TRRS (stereo with microphone). Each type has a different number of contact points and is designed for specific applications, so it's essential to ensure compatibility between your devices and the jacks you use.

Conclusion

Throughout this exploration of audio jacks, we've seen how these humble connectors have played a crucial role in shaping the world of audio technology. From the early days of telephone switchboards to the rise of portable devices and wireless audio, audio jacks have continuously evolved to meet the changing needs of users and industries alike.

As we look to the future, it's clear that audio connectivity will continue to transform, with digital solutions like USB-C and wireless technologies becoming increasingly prevalent. However, this doesn't mean that traditional audio jacks will disappear entirely. Just as vinyl records have experienced a resurgence in recent years, there will always be a place for analog audio connections, particularly among audiophiles and professionals who value their simplicity and reliability.

The key to navigating this changing landscape lies in understanding the strengths and limitations of each type of audio jack and choosing the right solution for your specific needs. Whether you're a musician looking for a sturdy connection for your instrument, a podcaster seeking the perfect microphone setup, or a casual listener in search of convenience, there's an audio jack out there that can help you achieve your goals.
